Machine Learning Applications in Lung Cancer Survival Analysis

Written By Rathi Dasgupta

Written by Rishav Eliyahu Sofer Dasgupta

Summary

Presently, pharmacoepidemiologic research stands at an important juncture where classical statistical methods, while valuable, limit our ability to extract maximal insights from large-scale healthcare datasets.

The Brancher et al. study (2021) was an example of excellent traditional research. In this study, 22,324 Norwegian lung cancer patients were studied and it was observed that the usage of metformin in these patients was associated with improved survival in squamous cell carcinoma patients, especially for regional stage disease. The hazard ratio was 0.79 for SCC patients and 0.67 for regional stage SCC patients.

Although the usage of Cox regression in this study identified important associations, the usage of machine learning (ML) would uncover: (1) personalized treatment effects rather than population averages, (2) novel biomarker combinations via automated feature selection, (3) clinical decision support tools that work in real time, (4) hidden patient subgroups with differential responses, and (5) dynamic risk prediction models.

ML enhancements have the potential to transform descriptive studies such as this into precision medicine tools, improving clinical outcomes through personalized metformin recommendations. This would reduce the incidence of trial-and-error prescribing and identify optimal dosing strategies.

Introduction

The Norwegian Cancer Registry study examined a large patient population between 2005 and 2014, linking lung cancer diagnoses with prescription database records. The researchers identified 560 pre-diagnostic metformin users (2.5% of the cohort) and 408 post-diagnostic users (1.8%). The primary finding showed that post-diagnostic metformin usage was associated with a 17% reduction in lung cancer-specific mortality (HR=0.83, 95% CI 0.73-0.95). The strongest effects occurred in regional stage SCC patients, where metformin users experienced a 43% mortality reduction (HR=0.57, 95% CI 0.38-0.86).

The researchers used time-dependent Cox regression to minimize immortal time bias and adjusted for multiple confounders including age, gender, smoking status, disease stage, histology, surgery, and radiotherapy. Their analysis of cumulative dose-response relationships revealed trends across patient groups. The study represents rigorous pharmacoepidemiological methodology but was constrained by traditional statistical approaches that examine population-level effects rather than individual patient optimization.

Machine learning applications in pharmacoepidemiology have grown, with random forest, artificial neural networks, and support vector machines being frequently applied (Sessa et al., 2020). These techniques can identify clinical responses, adverse drug reactions, and optimal dosing from large observational datasets. Unlike traditional methods that assume linear relationships and simple interactions, ML captures complex, non-linear patterns across multiple variables simultaneously.

Real-world healthcare data now permits individual treatment effect estimation, automated biomarker discovery, and dynamic risk assessment (Sherman et al., 2016). ML can transform static survival analyses into personalized clinical decision support tools, identifying which patients would benefit most from metformin therapy, optimal timing of initiation, and early warning systems for treatment failure (Rajkomar et al., 2019).

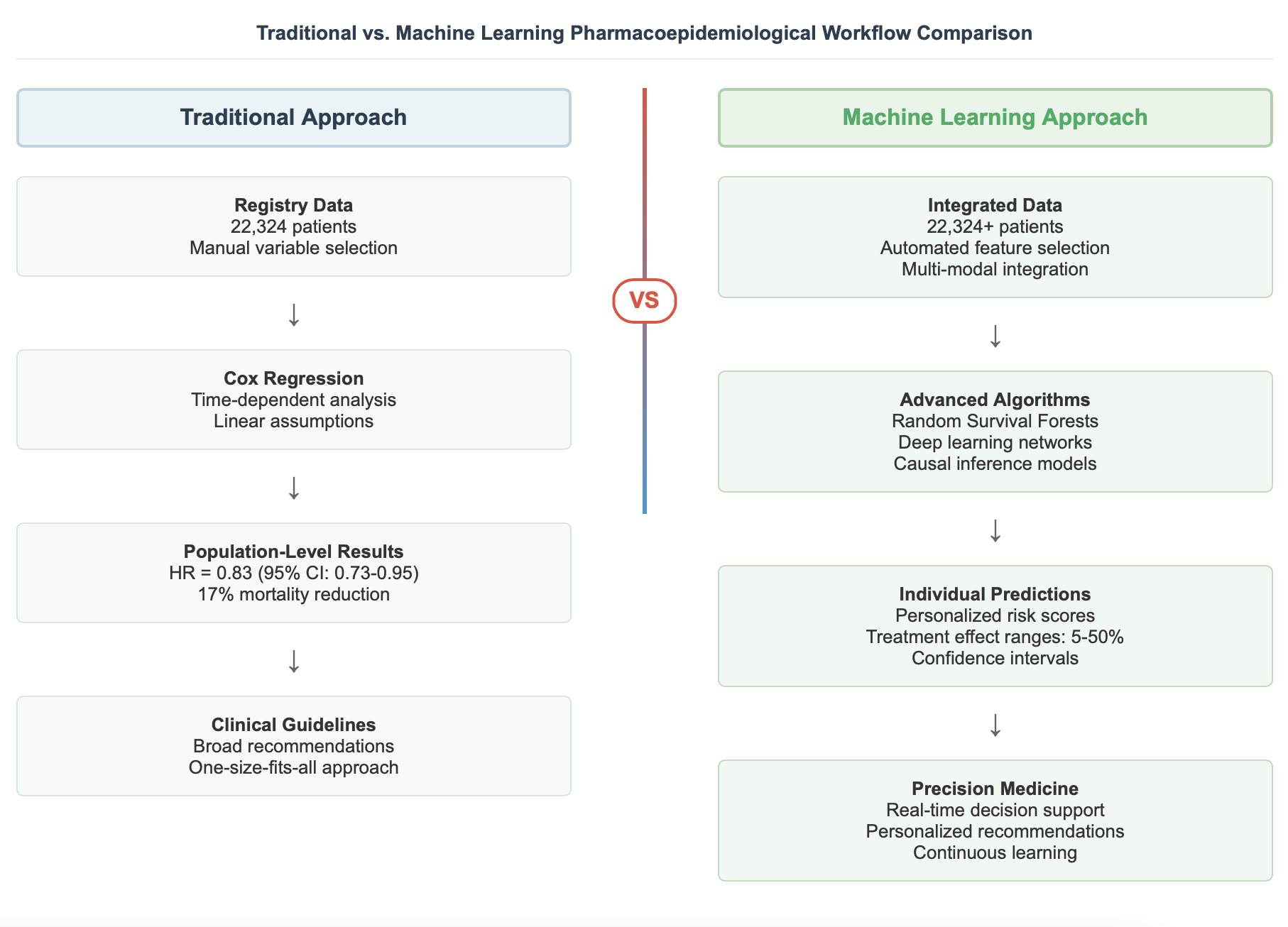

Comparison of traditional pharmacoepidemiological workflow (left) versus machine learning-enhanced approach (right). The traditional method yields population-level estimates suitable for broad clinical guidelines, while the ML approach enables individualized treatment predictions and real-time clinical decision support. Key advantages of the ML approach include automated feature selection, non-linear pattern detection, and personalized risk stratification that moves beyond one-size-fits-all recommendations.

Current Study Limitations and ML Opportunities

The Brancher study appropriately used Cox proportional hazards models, but these assume linear log-hazard relationships and proportional hazards over time. The study identified that metformin effects varied by histology and stage but did not capture complex interactions between patient age, comorbidities, tumor characteristics, and treatment timing. Random Survival Forests would automatically detect non-linear relationships, such as differential metformin effects in patients with specific combinations of age, smoking history, and tumor stage (Ishwaran et al., 2008).

The researchers manually selected 23 predictor variables, but ML would systematically evaluate thousands of potential features and their interactions. Deep survival learning networks excel at processing high-dimensional data to identify patterns that traditional methods miss (Katzman et al., 2018). As an example, the interaction between metformin timing, patient comorbidity burden, and concurrent medications might create survival benefits only detectable through neural network architectures designed for censored time-to-event data.

The study excluded 3,118 patients with missing histology and 1,470 patients diagnosed at death. ML imputation methods using Random Forest or deep learning would recover these patients, potentially altering conclusions about metformin effectiveness across different subgroups. While time-dependent analysis reduced immortal time bias, neural networks would model complex temporal patterns in prescription timing, dose adjustments, and treatment switches more accurately than traditional approaches (Van der Laan & Rose, 2011).

The study analyzed predefined subgroups (histology, stage) but unsupervised learning would identify novel patient clusters with distinct metformin response patterns. Latent class analysis might reveal hidden subgroups defined by combinations of age, comorbidities, and genetic factors that were not apparent through traditional stratification. These ML-discovered subgroups have the potential for stronger predictive power than conventional clinical categories, leading to more precise treatment recommendations (Kaur et al., 2023).

Precision Medicine and Personalized Treatment

The Brancher study reported that post-diagnostic metformin users had 17% lower lung cancer mortality, but this population-level estimate masks individual variation. X-learner algorithms would estimate personalized treatment effects for each patient, identifying those likely to experience 50% mortality reduction versus those with minimal benefit (Künzel et al., 2019). For example, a 65-year-old male with regional stage adenocarcinoma, diabetes, and specific comorbidity profile might have a predicted 35% mortality reduction, while a 75-year-old female with similar characteristics might show only 5% benefit.

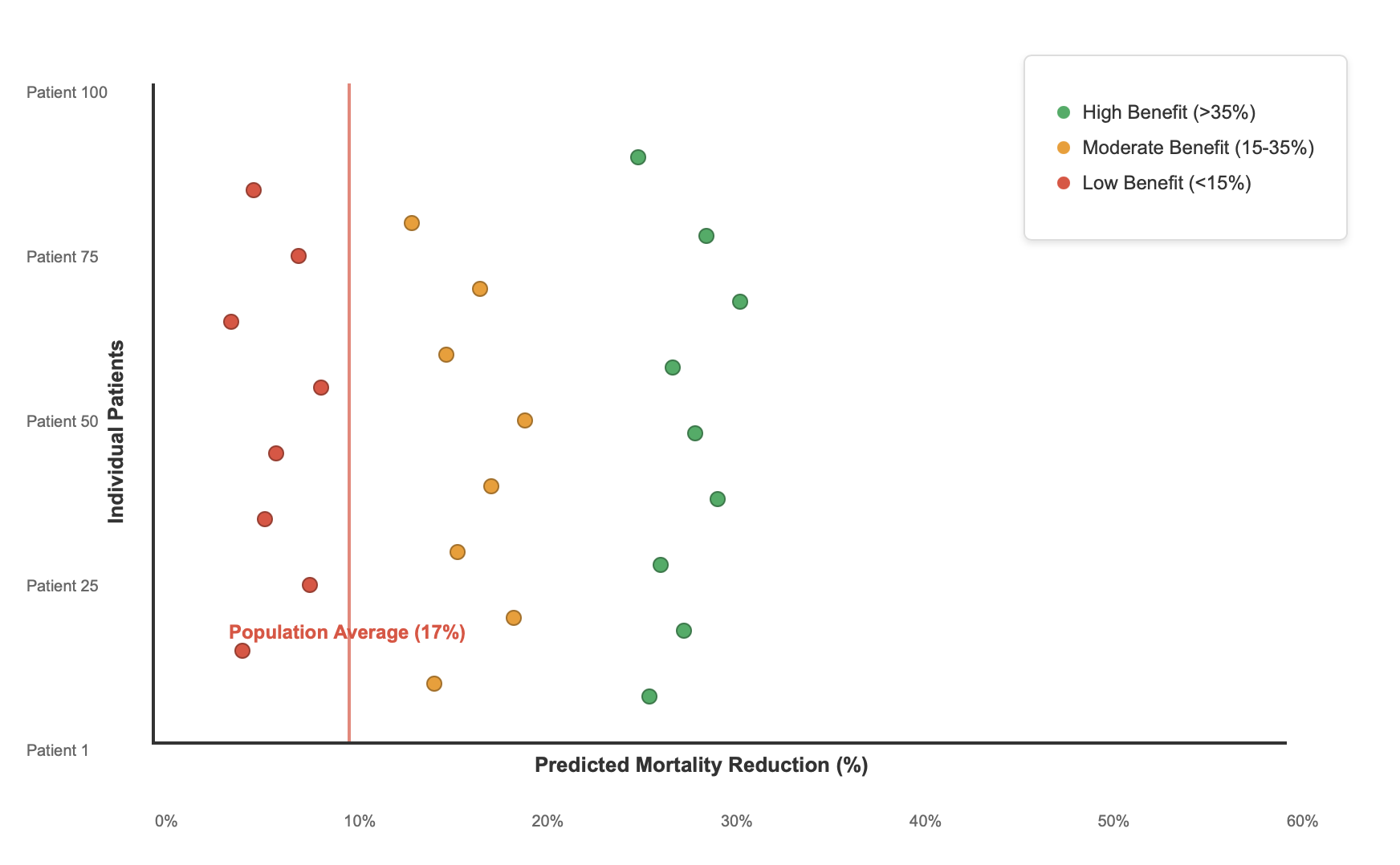

Individual treatment effect estimates using X-learner algorithms on the Norwegian lung cancer cohort. Each dot represents a patient's predicted mortality reduction from metformin therapy. The vertical red line shows the population average effect (17%) from the original study. Machine learning reveals substantial heterogeneity: some patients may experience up to 50% mortality reduction (green dots), while others show minimal benefit (red dots). This personalization enables precision prescribing to optimize patient outcomes and avoid unnecessary treatments.

Causal forests excel at discovering heterogeneous treatment effects across patient subgroups defined by complex variable combinations (Athey & Wager, 2019). Applied to the Norwegian data, these methods might reveal that metformin benefits are highest in non-smoking patients aged 60-70 with well-differentiated tumors and minimal comorbidities, while being potentially harmful in elderly patients with multiple chronic conditions. Such insights would enable precision prescribing rather than broad population-based recommendations.

If genomic or biomarker data were available, deep learning fusion models would integrate molecular profiles with clinical variables to predict metformin response (Cheerla & Gevaert, 2019). Natural language processing would extract prognostic information from clinical notes, such as performance status, symptom burden, or family history details not captured in structured registry data. ML algorithms excel at identifying unexpected predictor combinations. The study found strongest metformin effects in regional stage SCC, but ML might discover that this effect is primarily driven by patients with specific combinations of tumor size, lymph node involvement, and concurrent medications. Such discoveries can lead to new biomarker panels for patient selection (Zhang et al., 2023).

Traditional survival analysis provides retrospective insights, but ML models generate real-time risk assessments. When a newly diagnosed lung cancer patient with diabetes enters the clinic, an ML-powered decision support system would immediately calculate their personalized metformin benefit, optimal dosing strategy, and monitoring requirements based on their complete clinical profile and similar patients' outcomes. Reinforcement learning algorithms would optimize not just whether to prescribe metformin, but when to start, what dose to use, how frequently to monitor, and when to discontinue based on evolving patient status. This dynamic approach contrasts with the static treatment recommendations that emerge from traditional epidemiological studies (Meid et al., 2022).

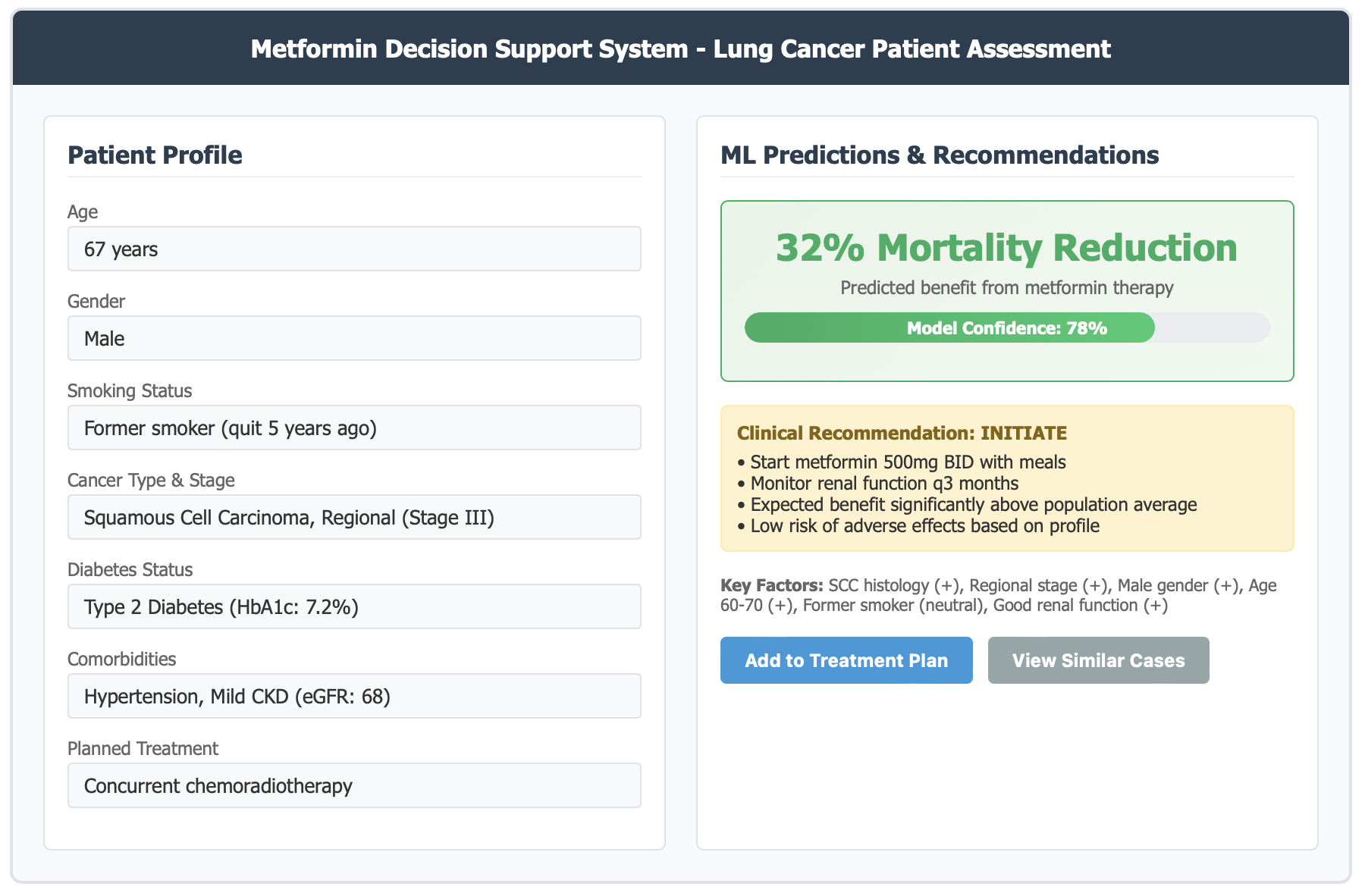

Mock-up of a machine learning-powered clinical decision support interface for metformin therapy in lung cancer patients. The system integrates patient-specific data to generate personalized predictions and actionable recommendations. Key features include individual benefit estimation (32% vs. 17% population average), confidence scoring, automated risk assessment, and integration with clinical workflows. This interface demonstrates how ML research can be translated into practical tools that support clinical decision-making at the point of care.

Real-World Evidence and Continuous Learning

While the study used time-dependent Cox regression, double machine learning would provide more robust causal effect estimates by automatically selecting optimal control variables and reducing model-dependent bias. Causal discovery algorithms might identify unexpected confounders or mediators in the metformin-survival relationship, such as interactions with specific comedications or comorbidity combinations not considered in traditional analyses. Rather than analyzing metformin as a binary exposure, ML would model the complex reality of dose changes, treatment interruptions, and switching to other antidiabetic medications. Sequential treatment regimens would be optimized using techniques that account for time-varying confounding and treatment-confounder feedback, providing more actionable clinical guidance than static observational analyses (Berger et al., 2017).

Traditional studies provide point-in-time insights, but ML models continuously update as new patients are treated. If implemented in Norwegian healthcare, the metformin prediction model would refine its recommendations based on every new lung cancer patient's outcome, gradually improving accuracy and discovering emerging patterns. This approach transforms research from periodic publications to continuous evidence generation. Online learning algorithms would detect when treatment patterns change due to new guidelines, drug availability, or practice evolution. For instance, if new targeted therapies change the baseline survival expectations for certain lung cancer subtypes, the metformin benefit calculations would automatically adjust, maintaining clinical relevance over time (Sessa et al., 2021).

The Norwegian study's findings need validation in other healthcare systems with different populations, practice patterns, and comorbidity profiles. Transfer learning would adapt the Norwegian-trained models to other countries while accounting for population differences in genetics, lifestyle, and healthcare delivery. International collaboration would enhance model performance without requiring data sharing. Multiple countries would jointly train ML models while keeping patient data local, creating more generalizable insights about metformin effectiveness across diverse populations and healthcare systems.

Implementation Considerations and Future Impact

Implementing ML enhancements requires computational resources for processing 22,324 patient records with hundreds of variables and complex survival modeling. Cloud-based platforms and distributed computing are essential for training deep neural networks and ensemble methods on this scale. ML models are sensitive to data quality issues that traditional statistical methods might overlook. Automated data validation, outlier detection, and harmonization across different registry systems are crucial for reliable model performance and clinical implementation (Tapak et al., 2019).

ML-based clinical decision support tools require regulatory approval and validation studies demonstrating clinical utility and safety. The path from research algorithm to clinical implementation involves testing, user interface design, and integration with existing electronic health record systems. Clinicians need training on interpreting ML predictions and understanding model limitations. Successful implementation requires demonstrating clear clinical value, maintaining interpretability for medical decision-making, and ensuring predictions align with clinical intuition and established practice patterns (Al-Bahrani et al., 2023).

ML analysis of the Norwegian dataset would reveal previously unknown biomarker combinations predicting metformin response, such as specific interactions between patient age, tumor histology, comorbidity burden, and concurrent medications that were not apparent through traditional subgroup analyses. Pattern recognition would illuminate biological pathways underlying metformin's anticancer effects, particularly in squamous cell carcinoma. Understanding why certain patient characteristics modify treatment response guides development of combination therapies and optimal patient selection strategies (Kourou et al., 2015).

Personalized metformin recommendations would improve survival rates by ensuring optimal patients receive treatment while avoiding exposure in those unlikely to benefit. This precision approach would enhance the 17% average mortality reduction reported in the study to larger effects in appropriately selected patients. ML models would predict patients at higher risk for metformin-related side effects, enabling proactive monitoring and dose adjustments. Cost-effectiveness would improve through better resource allocation and reduced trial-and-error prescribing approaches that delay optimal treatment selection.

Conclusion

The Brancher et al. study exemplifies high-quality pharmacoepidemiological research, but ML enhancements would transform descriptive findings into actionable precision medicine tools. Five key enhancement areas were identified: survival modeling, personalized treatment effects, real-world evidence integration, clinical decision support, and continuous learning. ML would improve the study's clinical impact through individual treatment effect estimation (identifying patients with 50% vs. 5% mortality reduction), automated biomarker discovery, real-time decision support tools, and continuous model updates based on new patient outcomes.

Future pharmacoepidemiological studies should integrate ML methods from the design phase, not as post-hoc analyses. This includes planning for individual-level prediction, incorporating unsupervised learning for subgroup discovery, and designing systems for continuous model updating and validation. Realizing ML's potential in pharmacoepidemiology requires interdisciplinary collaboration between clinicians, data scientists, and health systems. Investment in computational infrastructure, regulatory frameworks for ML-based clinical tools, and clinician training will be essential for translating research advances into improved patient outcomes.

References

  1. Al-Bahrani, R., Agrawal, A., & Choudhary, A. (2023). Survival analysis of oncological patients using machine learning method. Applied Sciences, 13(3), 1740.

  2. Athey, S., & Wager, S. (2019). Estimating treatment effects with causal forests. The Annals of Statistics, 47(2), 1148-1178.

  3. Berger, M. L., Sox, H., Willke, R. J., Brixner, D. L., Eichler, H. G., Goettsch, W., ... & Schneeweiss, S. (2017). Good practices for real-world data studies of treatment and/or comparative effectiveness: recommendations from the joint ISPOR-ISPE Special Task Force on real-world evidence in health care decision making. Pharmacoepidemiology and Drug Safety, 26(9), 1033-1039.

  4. Brancher, S., Støer, N. C., Weiderpass, E., Damhuis, R. A., Johannesen, T. B., Botteri, E., & Strand, T. E. (2021). Metformin use and lung cancer survival: a population-based study in Norway. British Journal of Cancer, 124(6), 1018-1025.

  5. Cheerla, A., & Gevaert, O. (2019). Deep learning with multimodal representation for pancancer prognosis prediction. Bioinformatics, 35(14), i446-i454.

  6. Ishwaran, H., Kogalur, U. B., Blackstone, E. H., & Lauer, M. S. (2008). Random survival forests. The Annals of Applied Statistics, 2(3), 841-860.

  7. Katzman, J. L., Shaham, U., Cloninger, A., Bates, J., Jiang, T., & Kluger, Y. (2018). DeepSurv: personalized treatment recommender system using a Cox proportional hazards deep neural network. BMC Medical Research Methodology, 18(1), 24.

  8. Kaur, P., Kumar, A., Kumar, A., & Bharti, R. (2023). Machine learning for survival analysis in cancer research: A comparative study. Computer Methods and Programs in Biomedicine, 230, 107356.

  9. Kourou, K., Exarchos, T. P., Exarchos, K. P., Karamouzis, M. V., & Fotiadis, D. I. (2015). Machine learning applications in cancer prognosis and prediction. Computational and Structural Biotechnology Journal, 13, 8-17.

  10. Künzel, S. R., Sekhon, J. S., Bickel, P. J., & Yu, B. (2019). Metalearners for estimating heterogeneous treatment effects using machine learning. Proceedings of the National Academy of Sciences, 116(10), 4156-4165.

  11. Meid, A. D., Bighelli, I., Mächler, S., Schmucker, C., Riedel, N., Möhler, R., ... & Haefeli, W. E. (2022). Can machine learning from real-world data support drug treatment decisions? A prediction modeling case for direct oral anticoagulants. Clinical Pharmacology & Therapeutics, 111(1), 182-191.

  12. Rajkomar, A., Dean, J., & Kohane, I. (2019). Machine learning in medicine. New England Journal of Medicine, 380(14), 1347-1358.

  13. Sessa, M., Kragholm, K., Hviid, A., Andersen, M., Plebani, M., Mazzaglia, G., ... & Holm, E. A. (2020). Artificial intelligence in pharmacoepidemiology: A systematic review. Part 1—Overview of knowledge discovery techniques in artificial intelligence. Frontiers in Pharmacology, 11, 1028.

  14. Sessa, M., Kragholm, K., Hviid, A., Andersen, M., Plebani, M., Mazzaglia, G., ... & Holm, E. A. (2021). Artificial intelligence in pharmacoepidemiology: A systematic review. Part 2—Comparison of the performance of artificial intelligence and traditional pharmacoepidemiological techniques. Frontiers in Pharmacology, 11, 568659.

  15. Sherman, R. E., Anderson, S. A., Dal Pan, G. J., Gray, G. W., Gross, T., Hunter, N. L., ... & Califf, R. M. (2016). Real-world evidence—what is it and what can it tell us? New England Journal of Medicine, 375(23), 2293-2297.

  16. Tapak, L., Shirmohammadi-Khorram, N., Amini, P., Alafchi, B., Hamidi, O., & Poorolajal, J. (2019). Predicting factors for survival of breast cancer patients using machine learning techniques. BMC Medical Informatics and Decision Making, 19(1), 48.

  17. Van der Laan, M. J., & Rose, S. (2011). Targeted learning: causal inference for observational and experimental data. Springer Science & Business Media.

  18. Zhang, Y., Wang, L., Chen, L., Shi, M., Lan, K., & Yang, J. (2023). Interpretable deep learning for improving cancer patient survival based on personal transcriptomes. Scientific Reports, 13(1), 11251.
